Solution Architecture
Our IndoorPlus+ architecture offers a flexible and scalable framework for implementing multiple applications, accommodating diverse use cases. It features a unified backend and core software platform that simplifies integration and data management. Streamlines the deployment of geolocation and monitoring solutions, enabling seamless adaptation to various scenarios, while optimizing existing infrastructure in healthcare settings.
- Application Layer
-
Asset Tracking & Utilization
Patient Monitoring
Flow Optimization
Other Applications
Staff Safety
Digital Wayfinding
Med. Device Monitoring
Contact Tracing

- Platform Layer
On-Premise or Cloud -
IndoorPlus+ IoT / IoMT / RTLS / LBS Platform
External Systems
APls

- Collection Layer
-
Infrastructure : BLE-enabled WiFi, BLE Gateways / Scanners

- Tracked Elements People,
Objects and Sensors -
People Tags
Asset Tags
BLE
EcosystemSmart Devices
Medical Devices

01
Application Layer

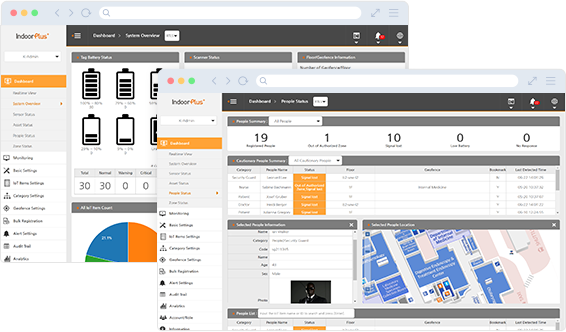

Tailored to specific use cases, our IndoorPlus+ plattform offers web applications and mobile apps that deliver precise user functionalities and business logic to Medical Staff, Patients and any stakeholder.
02
Platform Layer
The Platform Layer provides essential services, such as real-time data processing, location and AI algorithms, streaming and archival data storage, notification and alarm management, and support for APIs and protocols to integrate with other systems.


03
Collection Layer

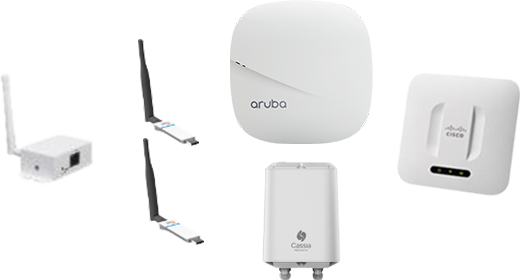

The Collection Point Devices (CPD) network consists often of BLE-enabled Wi-Fi access points or dedicated BLE scanners, maximizing use of existing infrastructure. It collects and forwards BLE signals from registered tags, Medical Devices or Smart Device to the back-end platform.
04
Tracked Elements

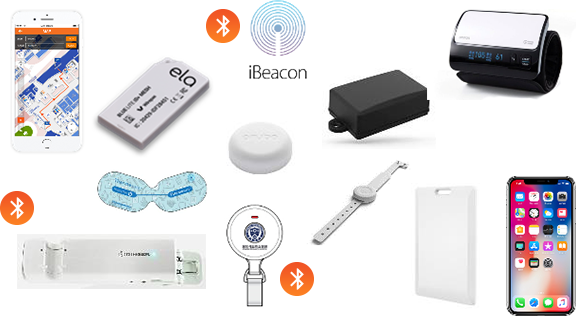

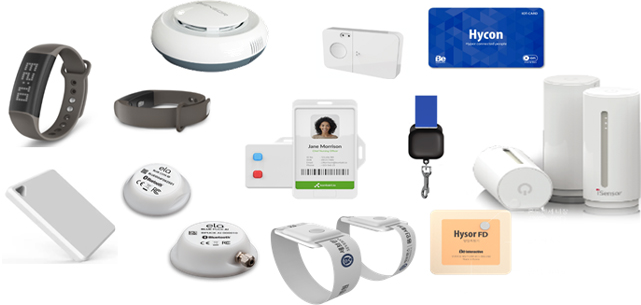

Each item, asset, or individual requiring geolocation or monitoring is outfitted with a specific BLE Tag, chosen based on their use case and characteristics. Additionally, a smartphone or tablet can be configured to function as a "soft" BLE Tag when needed.


05
BLE Sensor Technology - Simplified
BLE Sensor Technology and Data Transmission : BLE technology supports diverse, easy-to-install sensors with long battery life for monitoring environmental conditions and vital signs. It allows for real-time data transmission at intervals from 100 milliseconds to 10 seconds, suitable for extensive sensor networks.
06
Advantages of BLE Sensor Technology

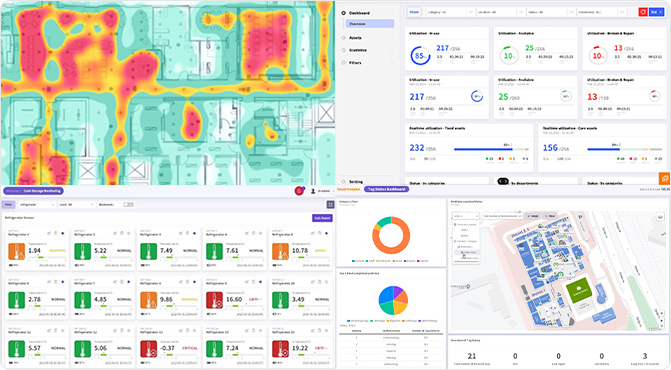

Real-Time Monitoring : BLE sensors enable ongoing monitoring with immediate updates, allowing quick reaction to changes in environmental conditions.
Expandability : BLE sensors operate without the need for constant connections, allowing a single gateway to manage many sensors efficiently, which is ideal for location-based services.
Seamless Data Consolidation : The Indoorplus+ system effectively combines data from both stationary and portable sensors, providing detailed analytics for various uses.
